Convertitore UHF GTV1091

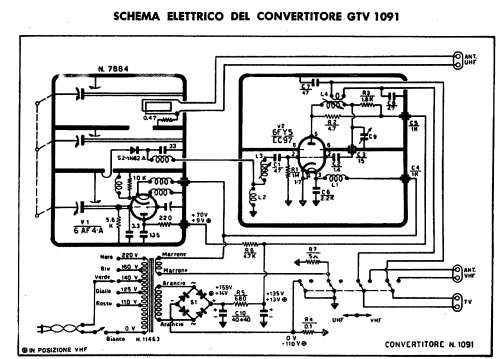

Convertitore UHF GTV1091; Geloso SA; Milano (ID = 402097) Converter
Convertitore UHF GTV1091; Geloso SA; Milano (ID = 402098) Converter
Use red slider bar for more.
Convertitore UHF GTV1091; Geloso SA; Milano (ID = 402098) Converter
Geloso SA; Milano: Convertitore UHF GTV1091 [Converter] ID = 402098 894x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Convertitore UHF GTV1091, Geloso SA; Milano

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1963 Category: Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
Valves / Tubes 2: 6AF4A EC97 or 6FY5
Main principle RF Converter/Adapter (not voltage converter)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Convertitore UHF GTV1091 - Geloso SA; Milano
Material Metal case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 169 x 65 x 195 mm / 6.7 x 2.6 x 7.7 inch
Notes Converte le frequenze comprese nella banda UHF (470-890 MHz) nella frequenza di uno dei tre primi canali italiani (A-B-C) della banda VHF. Diodo miscelatore 1N82-A, ponte di diodi al silicio.
UHF (470-890 MHz) to VHF (52,5-59,5 or 61-68 or 81-88 MHz) converter, GTV1091/A or B or C.
Literature/Schematics (1) Bollettino Tecnico Geloso (n. 89 estate 1963)

Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
