Diffusore amplificato 3097

Diffusore amplificato 3097; Geloso SA; Milano (ID = 397325) Misc
Diffusore amplificato 3097; Geloso SA; Milano (ID = 397324) Misc
Use red slider bar for more.
Diffusore amplificato 3097; Geloso SA; Milano (ID = 397324) Misc

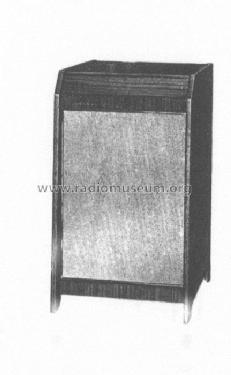

Geloso SA; Milano: Diffusore amplificato 3097 [Misc] ID = 397324 432x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Diffusore amplificato 3097, Geloso SA; Milano

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1964 Category: Miscellaneous (Other, Various) - see notes
Semiconductors (the count is only for transistors) 6:
Main principle Audio-Amplification
Wave bands - without
Details Loudspeaker + integr.Amplifier
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out 8 W (unknown quality)
from Radiomuseum.org Model: Diffusore amplificato 3097 - Geloso SA; Milano
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 460 x 920 x 340 mm / 18.1 x 36.2 x 13.4 inch
Notes Transistor: 2x AC126, AF118, AC132, AC127, 2x AD132.
Diffusore acustico amplificato mediante amplificatore G248-HF, un altoparlante magnetodinamico diam. 300 mm per le note medio basse, un altoparlante diam. 100 mm. per le note alte.
Possibilità di amplificare segnali provenienti da un registratore, un sintonizzatore o un giradischi.
Literature/Schematics (1) Bollettino Tecnico Geloso (n. 93 estate 1964)

Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
