Fonovaligia Amplificata G294-V

Fonovaligia Amplificata G294-V; Geloso SA; Milano (ID = 384354) R-Player
Fonovaligia Amplificata G294-V; Geloso SA; Milano (ID = 2472544) R-Player Fonovaligia Amplificata G294-V; Geloso SA; Milano (ID = 2472545) R-Player
Fonovaligia Amplificata G294-V; Geloso SA; Milano (ID = 2472546) R-Player Fonovaligia Amplificata G294-V; Geloso SA; Milano (ID = 258836) R-Player
Fonovaligia Amplificata G294-V; Geloso SA; Milano (ID = 1376602) R-Player Fonovaligia Amplificata G294-V; Geloso SA; Milano (ID = 1376603) R-Player
Fonovaligia Amplificata G294-V; Geloso SA; Milano (ID = 1376604) R-Player Fonovaligia Amplificata G294-V; Geloso SA; Milano (ID = 1376605) R-Player
Fonovaligia Amplificata G294-V; Geloso SA; Milano (ID = 1376606) R-Player Fonovaligia Amplificata G294-V; Geloso SA; Milano (ID = 1709103) R-Player
Use red slider bar for more.
Fonovaligia Amplificata G294-V; Geloso SA; Milano (ID = 2472544) R-Player
Geloso SA; Milano: Fonovaligia Amplificata G294-V [R-Player] ID = 2472544 1208x1086
Select picture or schematic to display from thumbnails on the right and click for download.

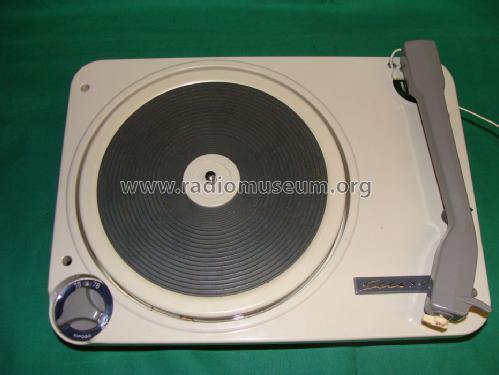

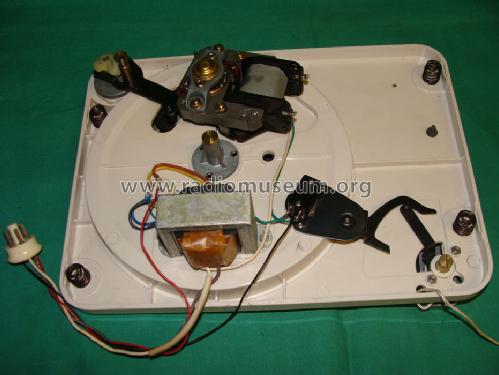

For model Fonovaligia Amplificata G294-V, Geloso SA; Milano

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1962 ? Category: Sound/Video Recorder and/or Player
Valves / Tubes 1: UCL82
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Fonovaligia Amplificata G294-V - Geloso SA; Milano
Material Leather / canvas / plastic - over other material
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 380 x 130 x 320 mm / 15 x 5.1 x 12.6 inch
Notes Fonovaligia amplificata con altoparlante ellittico. Giradischi a quattro velocità per dischi microsolco e 78 giri. Diodo al selenio per il raddrizzamento della tensione anodica E220 C90.
Net weight (2.2 lb = 1 kg) 5.3 kg / 11 lb 10.8 oz (11.674 lb)
Price in first year of sale 27'300.00
Mentioned in Bollettino Tecnico Geloso

Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.



All listed radios etc. from Geloso SA; Milano
Here you find 838 models, 747 with images and 603 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
