• Year
  • 1942–1944
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 18003

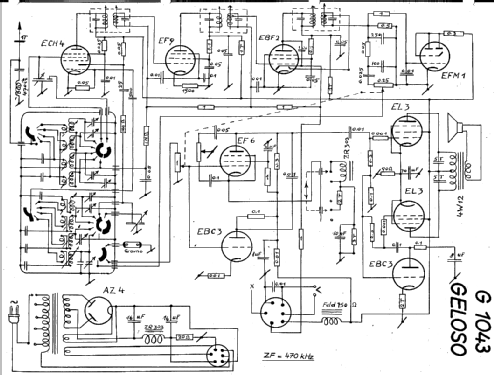

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 8 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet. / Ø 28 cm = 11 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: G1043 - Geloso SA; Milano
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 680 x 390 x 300 mm / 26.8 x 15.4 x 11.8 inch
  • Notes
  • .
  • Price in first year of sale
  • 845.00 SFR
  • External source of data
  • E. Erb 3-907007-36-0
  • Circuit diagram reference
  • Die «Thali Schemasammlung» führt das Modell.
  • Picture reference

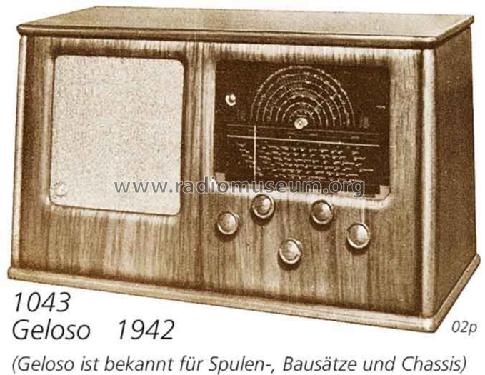

  • Das Modell ist im «Radiokatalog» (Erb) abgebildet.
