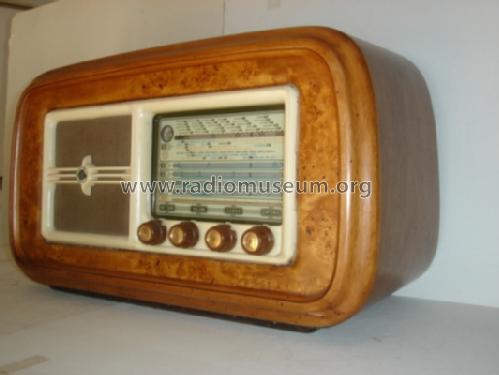

G126A; Geloso SA; Milano (ID = 359579) Radio G126A; Geloso SA; Milano (ID = 141216) Radio
G126A; Geloso SA; Milano (ID = 359581) Radio G126A; Geloso SA; Milano (ID = 428925) Radio
G126A; Geloso SA; Milano (ID = 751973) Radio G126A; Geloso SA; Milano (ID = 751984) Radio
G126A; Geloso SA; Milano (ID = 1064981) Radio G126A; Geloso SA; Milano (ID = 1064982) Radio
Use red slider bar for more.

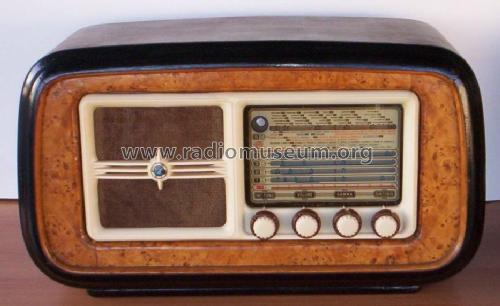

G126A; Geloso SA; Milano (ID = 429122) Radio
Geloso SA; Milano: G126A [Radio] ID = 429122 933x572
Select picture or schematic to display from thumbnails on the right and click for download.
For model G126A, Geloso SA; Milano

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1953–1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6BE6 6BA6 6AT6 6AQ5 6E5 6X4
Main principle Superheterodyne (common)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 140, 160, 220, 280 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: G126A - Geloso SA; Milano
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 590 x 300 x 230 mm / 23.2 x 11.8 x 9.1 inch
Notes 5 gamme d'onda: OM (180/580m) e 4 OC di tipo allargato (50-31-25-19m).
Altoparlante magnetodinamico Geloso SP200 con potenza media di 3-4W.
Mobile impiallacciato in radica.

5 wave bands: BC + 4 SW.
Magnet dynamic loudspeaker: Geloso SP200 (3-4W).
Veneered in briar-root.
Source of data Guida Pratica Antique Radio II (2000)
Mentioned in Catalogo Generale Radioprodotti Geloso 1953 e 1954-55, p. 180
Literature/Schematics (1) Guida Pratica Antique Radio III (2000)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
