G16/5 (II serie)

G16/5 ; Geloso SA; Milano (ID = 756570) Radio
G16/5 ; Geloso SA; Milano (ID = 2428048) Radio G16/5 ; Geloso SA; Milano (ID = 2326348) Radio
G16/5 ; Geloso SA; Milano (ID = 2326352) Radio G16/5 ; Geloso SA; Milano (ID = 2326350) Radio
G16/5 ; Geloso SA; Milano (ID = 2326351) Radio G16/5 ; Geloso SA; Milano (ID = 2326349) Radio
G16/5 ; Geloso SA; Milano (ID = 2326347) Radio G16/5 ; Geloso SA; Milano (ID = 2415992) Radio
G16/5 ; Geloso SA; Milano (ID = 2415994) Radio G16/5 ; Geloso SA; Milano (ID = 2415993) Radio
Use red slider bar for more.

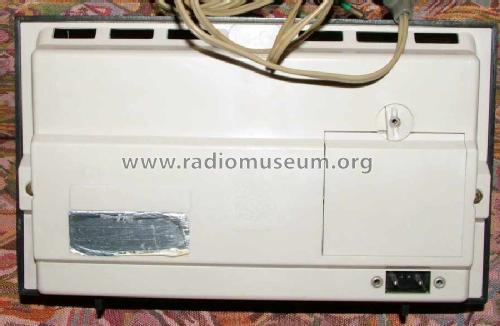

G16/5 ; Geloso SA; Milano (ID = 2428048) Radio
Geloso SA; Milano: G16/5 [Radio] ID = 2428048 900x566
Select picture or schematic to display from thumbnails on the right and click for download.
For model G16/5 (II serie), Geloso SA; Milano

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1969 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: AF117 AF117 AF117 BC178 BC148 AC128 AC127
Main principle Superheterodyne (common)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / 220 / 8 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: G16/5 - Geloso SA; Milano
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 250 x 150 x 120 mm / 9.8 x 5.9 x 4.7 inch
Literature/Schematics (1) -- Schematic (Schemario di Apparecchi Radio a Transistori Vol. 1° Antonelliana)
Literature/Schematics (2) -- Original prospect or advert (Catalogo Geloso, primavera 1969)

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
