Agreeable Voice G16/6

Agreeable Voice G16/6; Geloso SA; Milano (ID = 230265) Radio

Agreeable Voice G16/6; Geloso SA; Milano (ID = 230266) Radio
Agreeable Voice G16/6; Geloso SA; Milano (ID = 2416009) Radio Agreeable Voice G16/6; Geloso SA; Milano (ID = 2416012) Radio
Agreeable Voice G16/6; Geloso SA; Milano (ID = 2416011) Radio Agreeable Voice G16/6; Geloso SA; Milano (ID = 2416014) Radio
Agreeable Voice G16/6; Geloso SA; Milano (ID = 2416007) Radio Agreeable Voice G16/6; Geloso SA; Milano (ID = 2416008) Radio
Agreeable Voice G16/6; Geloso SA; Milano (ID = 2416010) Radio Agreeable Voice G16/6; Geloso SA; Milano (ID = 2416013) Radio

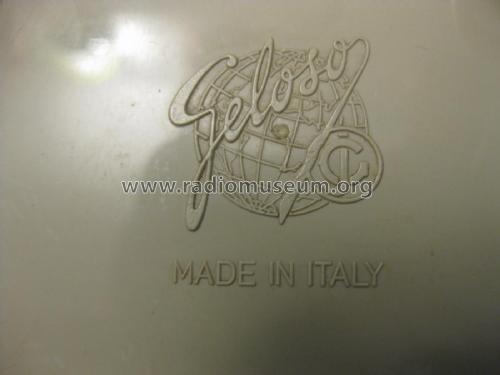

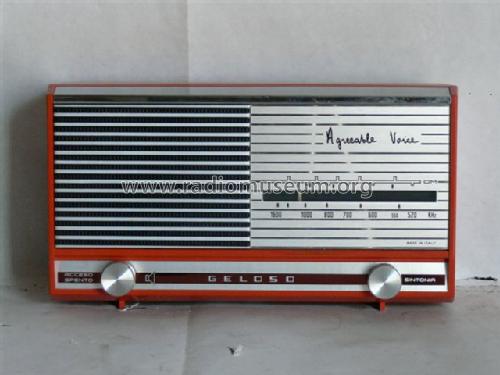

Agreeable Voice G16/6; Geloso SA; Milano (ID = 2416015) Radio Agreeable Voice G16/6; Geloso SA; Milano (ID = 230258) Radio
Use red slider bar for more.
Agreeable Voice G16/6; Geloso SA; Milano (ID = 2416009) Radio
Geloso SA; Milano: Agreeable Voice G16/6 [Radio] ID = 2416009 1400x848
Select picture or schematic to display from thumbnails on the right and click for download.
For model Agreeable Voice G16/6, Geloso SA; Milano:
Radio Geloso mod. G 16-6 (Agreeable voice) anno 1970

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Superheterodyne (common); ZF/IF 475 kHz
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / 110/220 12cc Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out 1.1 W (unknown quality)
from Radiomuseum.org Model: Agreeable Voice G16/6 - Geloso SA; Milano
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 250 x 150 x 120 mm / 9.8 x 5.9 x 4.7 inch
Notes Ricevitore solo onde medie 1600-520 KHz, antenna incorporata in ferrite. Transistor: BF194 BF194 BF194 BC148 BC158 DO1 AC127 AC128, tre diodi AA119.
Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
Mentioned in Bollettino Tecnico Geloso (bollettino N. 114 dell'autunno-inverno 1970-71 pag.23)

Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
