G276A
Geloso SA; Milano
- Country
- Italy
- Manufacturer / Brand
- Geloso SA; Milano
- Year
- 1950–1955
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 85243
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110, 125, 140, 160, 220, 280 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org

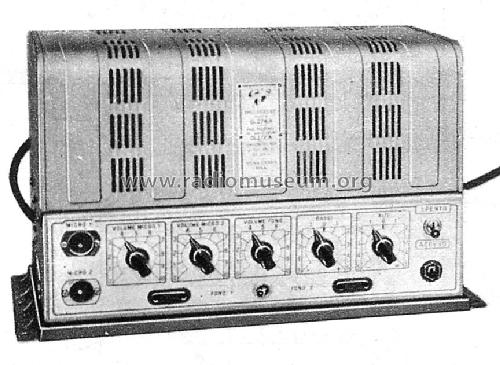

- Model: G276A - Geloso SA; Milano
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 390 x 220 x 232 mm / 15.4 x 8.7 x 9.1 inch
- Notes
- Amplificatore pilota combinabile con amplificatore di potenza G278A.
- Net weight (2.2 lb = 1 kg)
- 7 kg / 15 lb 6.7 oz (15.419 lb)
- Mentioned in
- Bollettino Tecnico Geloso (N.43 primavera 1950; N. 47/48 primavera-estate 1951)
- Literature/Schematics (1)
- Catalogo Generale Radioprodotti Geloso 1953 e 1954-55, pp. 169-171
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
