G30

G30; Geloso SA; Milano (ID = 262225) Radio

G30; Geloso SA; Milano (ID = 388243) Radio
G30; Geloso SA; Milano (ID = 388244) Radio
Use red slider bar for more.
G30; Geloso SA; Milano (ID = 388244) Radio

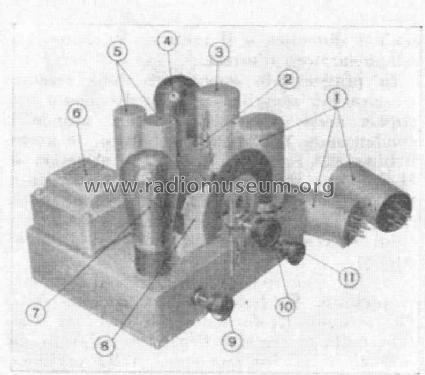

Geloso SA; Milano: G30 [Radio] ID = 388244 795x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model G30, Geloso SA; Milano

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1932/1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: 57 47 80
Main principle TRF with regeneration
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 100/125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: G30 - Geloso SA; Milano
Material Metal case, TUBES VISIBLE
Shape Chassis only or for «building in»
Notes Ricevitore a bobine intercambiabili,5 gamme d'onda: OL 550-1800 mt, OM 240-580 mt, OC1 95-270 mt, OC2 45-110 mt, OC3 18-55 mt.
Price in first year of sale 528.00 LIT
Literature/Schematics (1) Bollettino Tecnico Geloso (N. 6-7 del 1932-33)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
