Amplificatore G30A

Amplificatore G30A; Geloso SA; Milano (ID = 296301) Ampl/Mixer

Amplificatore G30A; Geloso SA; Milano (ID = 296300) Ampl/Mixer

Amplificatore G30A; Geloso SA; Milano (ID = 296299) Ampl/Mixer

Amplificatore G30A; Geloso SA; Milano (ID = 296302) Ampl/Mixer

Amplificatore G30A; Geloso SA; Milano (ID = 890969) Ampl/Mixer
Amplificatore G30A; Geloso SA; Milano (ID = 391695) Ampl/Mixer Amplificatore G30A; Geloso SA; Milano (ID = 539698) Ampl/Mixer
Amplificatore G30A; Geloso SA; Milano (ID = 539699) Ampl/Mixer Amplificatore G30A; Geloso SA; Milano (ID = 539696) Ampl/Mixer
Use red slider bar for more.
Amplificatore G30A; Geloso SA; Milano (ID = 391695) Ampl/Mixer
Geloso SA; Milano: Amplificatore G30A [Ampl/Mixer] ID = 391695 933x644
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplificatore G30A, Geloso SA; Milano

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1946 Category: Audio Amplifier or -mixer
Valves / Tubes 5: 6J7G 6N7G 6L6G 6L6G 5X4G
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-280 Volt
Loudspeaker - This model requires external speaker(s).
Power out 30 W (unknown quality)
from Radiomuseum.org Model: Amplificatore G30A - Geloso SA; Milano
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 440 x 225 x 220 mm / 17.3 x 8.9 x 8.7 inch
Notes Gamma delle frequenze acustiche 80-9000 Hz; Tensione ingresso per 30 W uscita 9 mV; Impedenze uscita 5-7 Ohm, 5-10-15-20 Ohm.
Mentioned in Bollettino Tecnico Geloso (nr. 36 del 1946)

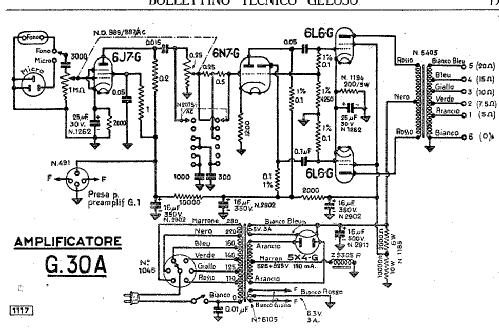

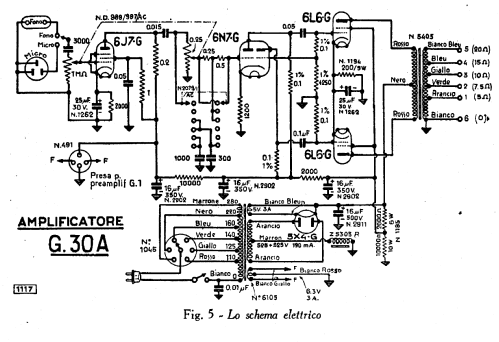

Literature/Schematics (1) -- Schematic

Model page created by a member from I. See "Data change" for further contributors.
