G310-A

G310-A; Geloso SA; Milano (ID = 854830) Radio
G310-A; Geloso SA; Milano (ID = 762726) Radio G310-A; Geloso SA; Milano (ID = 762728) Radio
G310-A; Geloso SA; Milano (ID = 762729) Radio G310-A; Geloso SA; Milano (ID = 762730) Radio
G310-A; Geloso SA; Milano (ID = 762732) Radio G310-A; Geloso SA; Milano (ID = 1209900) Radio

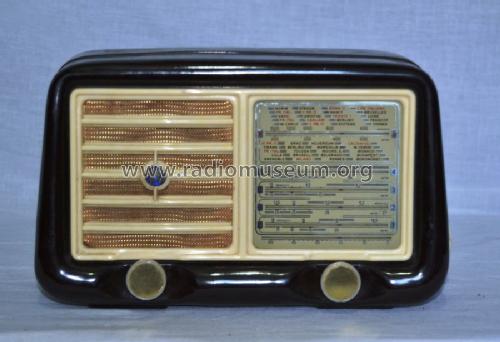

G310-A; Geloso SA; Milano (ID = 1541673) Radio G310-A; Geloso SA; Milano (ID = 1541674) Radio
G310-A; Geloso SA; Milano (ID = 1580149) Radio G310-A; Geloso SA; Milano (ID = 1580150) Radio
Use red slider bar for more.
G310-A; Geloso SA; Milano (ID = 762726) Radio
Geloso SA; Milano: G310-A [Radio] ID = 762726 816x616
Select picture or schematic to display from thumbnails on the right and click for download.
For model G310-A, Geloso SA; Milano:
Vista frontale della versione G310 AM colore marrone (S.Baldi)

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: UCH81 UBF89 UCL82
Main principle Superheterodyne (common); ZF/IF 467 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: G310-A - Geloso SA; Milano
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 250 x 150 x 120 mm / 9.8 x 5.9 x 4.7 inch
Notes Power supply: non isolating autotransformer. Dial lamp: 6,3V/0,15A.
Literature/Schematics (1) -- Schematic

Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
