G3407

G3407; Geloso SA; Milano (ID = 2313423) Radio
G3407; Geloso SA; Milano (ID = 1646623) Radio G3407; Geloso SA; Milano (ID = 1646620) Radio
G3407; Geloso SA; Milano (ID = 1646621) Radio G3407; Geloso SA; Milano (ID = 1646619) Radio
G3407; Geloso SA; Milano (ID = 1646615) Radio G3407; Geloso SA; Milano (ID = 1646602) Radio
G3407; Geloso SA; Milano (ID = 1646606) Radio G3407; Geloso SA; Milano (ID = 1646608) Radio

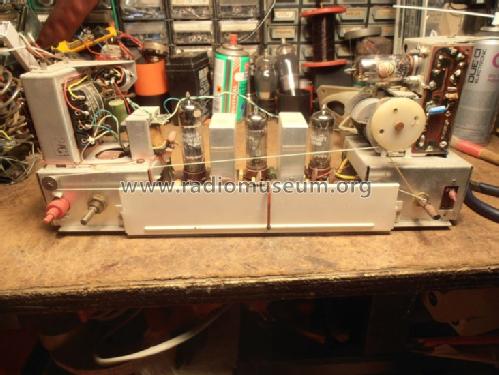

G3407; Geloso SA; Milano (ID = 1646609) Radio G3407; Geloso SA; Milano (ID = 1646612) Radio
Use red slider bar for more.
G3407; Geloso SA; Milano (ID = 1646623) Radio
Geloso SA; Milano: G3407 [Radio] ID = 1646623 733x550
Select picture or schematic to display from thumbnails on the right and click for download.
For model G3407, Geloso SA; Milano

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECC85 ECH81 EBF89 ECL86
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: G3407 - Geloso SA; Milano
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 380 x 160 x 120 mm / 15 x 6.3 x 4.7 inch
Notes Gamme d'onda: OM, FM, e canali TV.
Fornibile nelle versioni G3407/1 per canali TV-suono A-B-C, e G3407/2 per canali TV-suono C-D-E-F-G-H.
Mobile bianco avorio oppure marrone. FM 87,5 - 108Mc
Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)
Price in first year of sale 32'000.00 ITL
Mentioned in Catalogo ANIE 1965-66
Literature/Schematics (1) Bollettino Tecnico Geloso (n. 94, autunno 1964)

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
