G533; Geloso SA; Milano (ID = 273016) Radio
Geloso SA; Milano: G533 [Radio] ID = 273016 787x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model G533, Geloso SA; Milano:

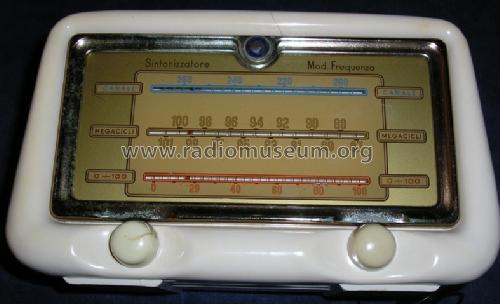

Foto per cortesia di Gabriele (venditore ebay: gabri.g)

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1956–1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: ECC85 EF89 EF89
Semiconductors (the count is only for transistors) OA79 OA79 Selenium-Rectifier
Main principle Superhet with RF-stage; ZF/IF 10700 kHz
Tuned circuits 9 AM circuit(s)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: G533 - Geloso SA; Milano
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 250 x 150 x 120 mm / 9.8 x 5.9 x 4.7 inch

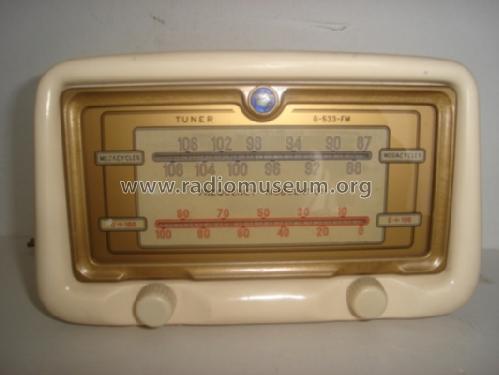

Notes Sintonizzatore FM gamma 87-100,5 MHz, per presa fono ricevitori AM o amplificatori. 2 diodi OA79. Raddrizzatore B155/C90. FM receiver, audio output to feed an amplifier or an AM receiver (phono input). Esiste variante per l'esportazione tramite l'American Geloso Electronics, con scala parlante 87-108 MHz in inglese.

Export Model for USA via Importer: American Geloso Electronics Inc., 312 Sevent Ave., New York 1, N. Y.
Net weight (2.2 lb = 1 kg) 1.9 kg / 4 lb 3 oz (4.185 lb)
Price in first year of sale 22'750.00 ITL
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in -- Original prospect or advert (Catalogo Generale Radioprodotti Geloso 1958)

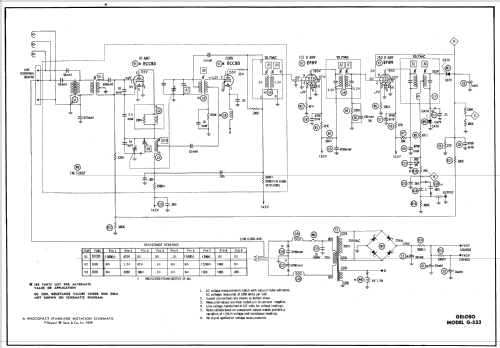

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 5-59, Set 441, Folder 5)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Geloso SA; Milano
Here you find 838 models, 747 with images and 603 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Geloso SA; Milano: G533
Threads: 1 | Posts: 2
Hits: 1964     Replies: 1
geloso: G533 (G.533);
Antonio Maida
25.May.07
  1 Esiste una versione del Sintonizzatore G533 con una diversa scala parlante in quanto la frequenza ricevibile copre l'intervallo 87-108 Mz. Poichè le diciture sono in inglese è probabile che era destinato al mercato estero.
Napoleon Robinson
24.Jan.17
  2

Hi thanks for the information posted.

I am new to Collecting and purchased this model on Ebay. I replaced the EF89 tubes.

I did not realize this model does not have speakers. How to listen to stations?



Napoleon
