G75R; Geloso SA; Milano (ID = 220305) Radio
Geloso SA; Milano: G75R [Radio] ID = 220305 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model G75R Export only, Geloso SA; Milano

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6TE8GT 6NK7GT 6Q7G 6V6G 6X5G
Main principle Superheterodyne (common); ZF/IF 467 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110-280 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: G75R [Export only] - Geloso SA; Milano
Material Wooden case

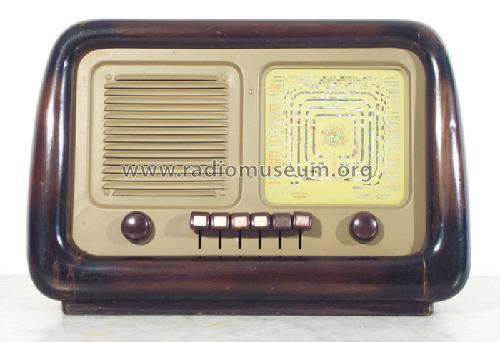

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 420 x 280 x 220 mm / 16.5 x 11 x 8.7 inch
Notes Solo esportazione. Questa radio come tante altre veniva venduta anche in scatola di montaggio e senza mobile.
Export only. Sold also without case, for building up.
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Mentioned in Bollettino Tecnico Geloso (n. 37-38 del 1946 pag.47-49)

Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.



All listed radios etc. from Geloso SA; Milano
Here you find 848 models, 763 with images and 603 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Geloso SA; Milano: G75R
Threads: 1 | Posts: 1
Hits: 1785     Replies: 0
geloso: G75R (G.75-R);
Enrico Bonisolo
30.Nov.06
  1 La valvola 6NK7 era una versione migliorata della 6k7, fu prodotta per breve tempo solo dalla FIVRE. L'altoparlante NON e' a spillo ma dinamico con bobina di campo. Questo ricevitore se ben tarato era notevolmente più sensibile dei soliti cinque valvole, specie sulle onde corte.
