G651

G651; Geloso SA; Milano (ID = 398512) R-Player

G651; Geloso SA; Milano (ID = 2273403) R-Player
G651; Geloso SA; Milano (ID = 1286751) R-Player G651; Geloso SA; Milano (ID = 1286754) R-Player
G651; Geloso SA; Milano (ID = 1546036) R-Player G651; Geloso SA; Milano (ID = 838568) R-Player
G651; Geloso SA; Milano (ID = 838570) R-Player G651; Geloso SA; Milano (ID = 398416) R-Player
G651; Geloso SA; Milano (ID = 537035) R-Player G651; Geloso SA; Milano (ID = 820186) R-Player
G651; Geloso SA; Milano (ID = 838571) R-Player G651; Geloso SA; Milano (ID = 839279) R-Player
Use red slider bar for more.
G651; Geloso SA; Milano (ID = 1286751) R-Player
Geloso SA; Milano: G651 [R-Player] ID = 1286751 800x627
Select picture or schematic to display from thumbnails on the right and click for download.
For model G651, Geloso SA; Milano

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1967/1968 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 6: BC107 or. BC108 BC107 or. BC108 BC107 or. BC108 AC125 AC187 AC188
Wave bands - without
Details Tape Recorder
Power type and voltage Line / Batteries (any type) / 105-240 ac/8x1,5 dc Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: G651 - Geloso SA; Milano
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 330 x 140 x 260 mm / 13 x 5.5 x 10.2 inch
Notes 2 velocità. Possibilità di ulteriore alimentazione con accumulatore esterno 12 volt. Microfono a corredo: T56.
Price in first year of sale 49'500.00 ITL
Mentioned in -- Original prospect or advert

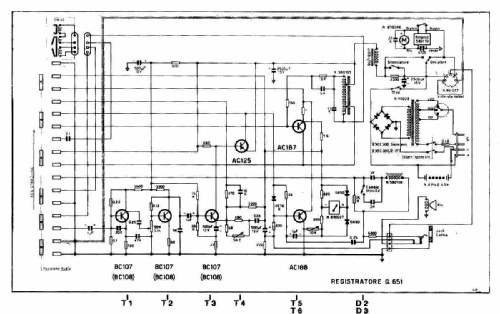

Literature/Schematics (1) Bollettino Tecnico Geloso (n 104 primavera 1967)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Geloso SA; Milano
Here you find 842 models, 757 with images and 602 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
