For model G72R Export only, Geloso SA; Milano

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1946/1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6V6G 6Q7GT 6K7GT 6TE8GT 5Y3G
Main principle Superheterodyne (common); ZF/IF 467 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 140, 160, 220, 280 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: G72R Export only - Geloso SA; Milano
Material Wooden case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 380 x 240 x 190 mm / 15 x 9.4 x 7.5 inch
Notes Di questo ricevitore ne esitono i modelli /5 or /6 or /7 che di variate hanno solo il gruppo AF e tutti con tre gamme d'onda
Mentioned in -- Collector info (Sammler)

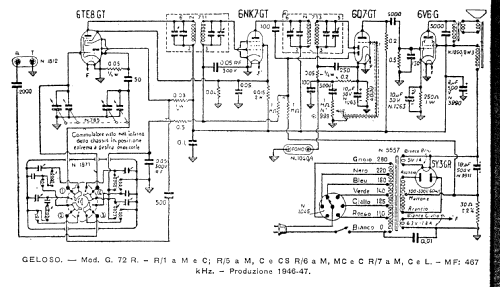

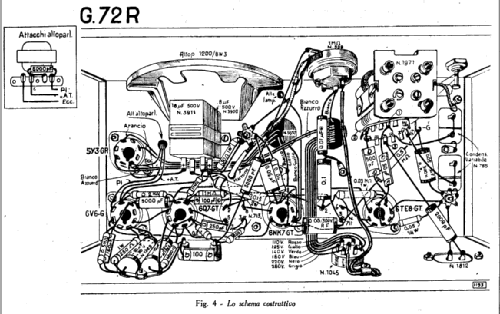

Literature/Schematics (1) Bollettino Tecnico Geloso (N. 37-38 autunno 1946)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Geloso SA; Milano
Here you find 847 models, 762 with images and 603 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Geloso SA; Milano: G72R Export only
Threads: 1 | Posts: 1
Hits: 2007     Replies: 0
geloso: G72R (G.72-R) Export only;
Pietro Ferrante
13.Nov.10
  1

dove posso reperire scala parlante di questo modello? saluti Ferrante Pietro
