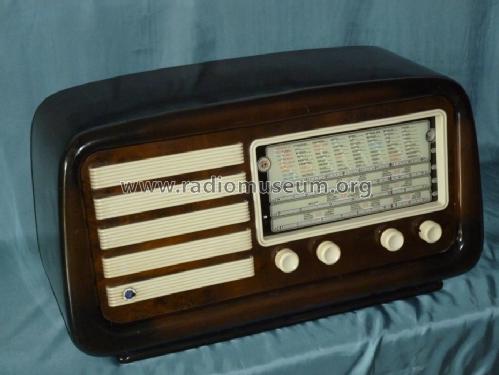

G79/S; Geloso SA; Milano (ID = 1402090) Radio G79/S; Geloso SA; Milano (ID = 1316997) Radio
G79/S; Geloso SA; Milano (ID = 1316973) Radio G79/S; Geloso SA; Milano (ID = 1316975) Radio
G79/S; Geloso SA; Milano (ID = 1316977) Radio G79/S; Geloso SA; Milano (ID = 1316987) Radio

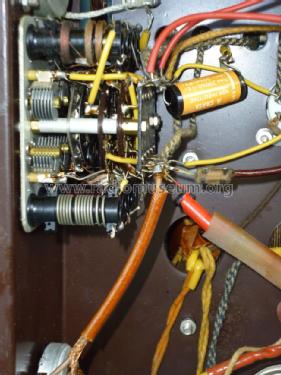

G79/S; Geloso SA; Milano (ID = 1316991) Radio G79/S; Geloso SA; Milano (ID = 1316993) Radio
G79/S; Geloso SA; Milano (ID = 1402089) Radio
Use red slider bar for more.
G79/S; Geloso SA; Milano (ID = 1402090) Radio
Geloso SA; Milano: G79/S [Radio] ID = 1402090 896x635
Select picture or schematic to display from thumbnails on the right and click for download.
For model G79/S, Geloso SA; Milano

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6SA7 6SK7GT 6SQ7GT 6C5G 6E5G 6N7G 5V4G
Main principle Superheterodyne (common); ZF/IF 467 kHz; 1 AF stage(s)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 28 cm = 11 inch
Power out 7 W (8 W max.)
from Radiomuseum.org Model: G79/S - Geloso SA; Milano
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 690 x 380 x 300 mm / 27.2 x 15 x 11.8 inch
Notes

For export only.

Mentioned in Schemario Angeletti Vol. III

Model page created by Roberto Cecchi. See "Data change" for further contributors.
