GTV1007/U

GTV1007/U; Geloso SA; Milano (ID = 1019862) Television GTV1007/U; Geloso SA; Milano (ID = 1019874) Television
Use red slider bar for more.
GTV1007/U; Geloso SA; Milano (ID = 1019862) Television

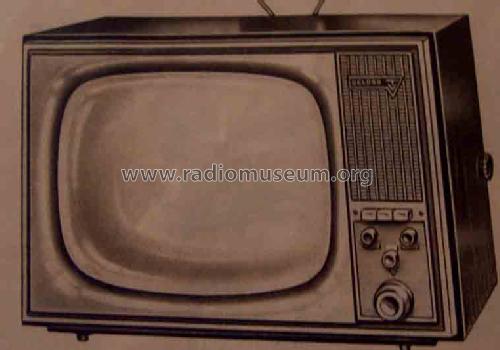

Geloso SA; Milano: GTV1007/U [Television] ID = 1019862 762x534
Select picture or schematic to display from thumbnails on the right and click for download.
For model GTV1007/U, Geloso SA; Milano:
Bolletino Tecnico Geloso nº 82 pag 14 autunno 1961

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1961 Category: Television Receiver (TV) or Monitor
Valves / Tubes 16:
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 100-290 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: GTV1007/U - Geloso SA; Milano
Material Various materials
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 580 x 420 x 350 mm / 22.8 x 16.5 x 13.8 inch
Notes Il televisore ha incorporato il sintonizzatore UHF per la ricezione del secondo programma. CRT 17" 110°. 1 rivelatore al germanio, 2 raddrizzatori al silicio.
Net weight (2.2 lb = 1 kg) 24 kg / 52 lb 13.8 oz (52.863 lb)
Price in first year of sale 152'000.00 ITL
Mentioned in Bollettino Tecnico Geloso (n. 82, autunno 1961)

Model page created by Juan José Gonzalez-Reguera. See "Data change" for further contributors.
