GTV1011

GTV1011; Geloso SA; Milano (ID = 2372753) Television

GTV1011; Geloso SA; Milano (ID = 2501233) Television
GTV1011; Geloso SA; Milano (ID = 1521397) Television GTV1011; Geloso SA; Milano (ID = 1521398) Television
Use red slider bar for more.
GTV1011; Geloso SA; Milano (ID = 1521397) Television
Geloso SA; Milano: GTV1011 [Television] ID = 1521397 932x683
Select picture or schematic to display from thumbnails on the right and click for download.
For model GTV1011, Geloso SA; Milano:

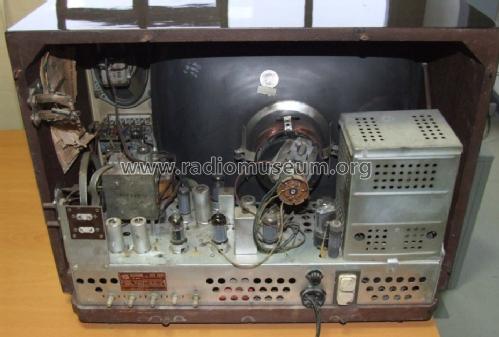

Geloso GTV 1011, my collection.

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1963 Category: Television Receiver (TV) or Monitor

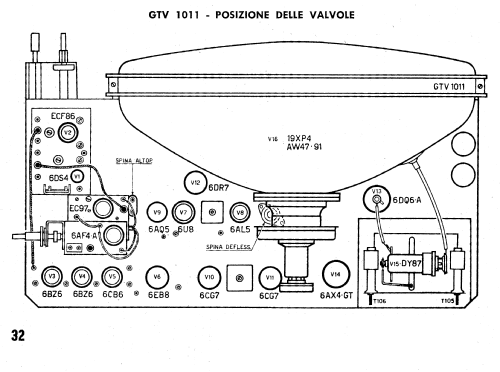

Valves / Tubes 18: 6DS4 6AF4A EC97 ECF86 6BZ6 6BZ6 6CB6 6EB8 6U8 6AL5 6AQ5 6CG7 6CG7 6DR7 6DQ6A 6AX4GT DY87 AW47-91
Semiconductors (the count is only for transistors) 1N82 1S1695 1S1695
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 120; 160; 220; 280 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: GTV1011 - Geloso SA; Milano
Shape Tablemodel, with any shape - general.
Notes

Verwendung von einem oder mehreren "Nuvistoren".


Prese per altoparlante supplementare e registratore audio.

Possibilità di variare tutte le tensioni di alimentazione di -10, -20, +10 V.

Literature/Schematics (1) -- Original-techn. papers. (Servizio Tecnico Geloso settembre 1963)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
