GTV1016 (Ch= GTV 968)

GTV1016 ; Geloso SA; Milano (ID = 494635) Television

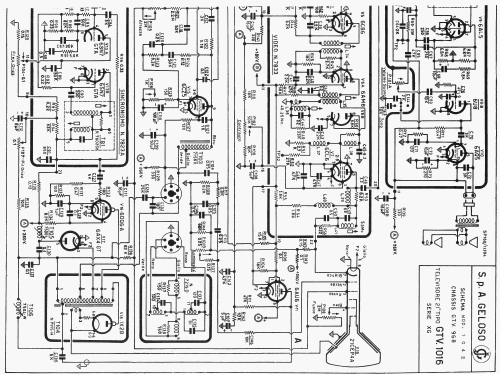

GTV1016 ; Geloso SA; Milano (ID = 494636) Television

GTV1016 ; Geloso SA; Milano (ID = 1581849) Television
GTV1016 ; Geloso SA; Milano (ID = 2108707) Television GTV1016 ; Geloso SA; Milano (ID = 2108766) Television
GTV1016 ; Geloso SA; Milano (ID = 2108708) Television GTV1016 ; Geloso SA; Milano (ID = 402107) Television
Use red slider bar for more.
GTV1016 ; Geloso SA; Milano (ID = 2108707) Television
Geloso SA; Milano: GTV1016 [Television] ID = 2108707 1400x1283
Select picture or schematic to display from thumbnails on the right and click for download.
For model GTV1016 (Ch= GTV 968), Geloso SA; Milano

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1959 Category: Television Receiver (TV) or Monitor
Valves / Tubes 19: 6BK7A 6CG8 6CB6 6AM8 6CL6 6U8 6AL5 6AQ5 6AU6 6SN7GTA 6C4 6CZ5 or 6EM5 6DQ6A 6AX4GT 1X2B 21CEP4A
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 100-290 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: GTV1016 - Geloso SA; Milano
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 520 x 590 x 385 inch / 13208 x 14986 x 9779 mm
Notes Schermo 21". Canali VHF (UHF opzionale). Nell'elenco valvole, ancora: 6CB6 6CB6 6SN7GTA.
Net weight (2.2 lb = 1 kg) 28.5 kg / 62 lb 12.4 oz (62.775 lb)
Circuit diagram reference Schemario TV , Il Rostro
Literature/Schematics (1) Bollettino Tecnico Geloso (n. 76 autunno 1959)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
