Invertitore a vibratore 50 Hz G1502/12

Geloso SA; Milano

  • Year
  • 1954
  • Category
  • Power supply/conditioner or battery or charger
  • Radiomuseum.org ID
  • 121987

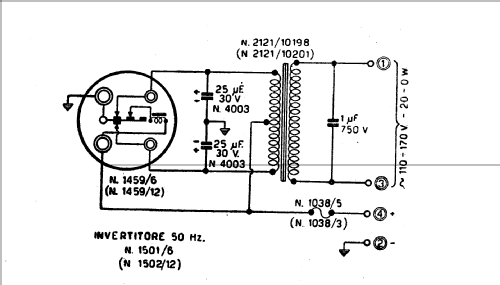

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Details
  • Power Supply (not only Batt.El.)
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Invertitore a vibratore 50 Hz G1502/12 - Geloso SA; Milano
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 126 x 143 x 104 mm / 5 x 5.6 x 4.1 inch
  • Notes
  • Inverter che trasforma la 12 volt DC in 110 volt AC 50 Hz potenza max 20 watt. La tensione a vuoto è di circa 170 volt.
