• Country
• Italy

• Manufacturer / Brand
• Geloso SA; Milano

• Year
• 1970

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 117219

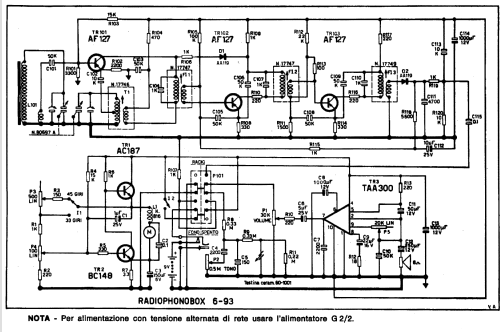

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• AF127 AF127 AF127 AC187 BC148 TAA300

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (not changer)

• Power type and voltage
• Dry Batteries

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Radiophonobox G6/93 - Geloso SA; Milano

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 260 x 80 x 270 mm / 10.2 x 3.1 x 10.6 inch

• Notes
• Mangiadischi 33/45 giri. Transistor montati per la sezione radio e controllo motorino: 3X AF127, AC187 BC148. Sezione amplificatore circuito integrato TAA300

• Mentioned in
• Bollettino Tecnico Geloso (n. 112-113)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
