G681; Geloso SA; Milano (ID = 221415) R-Player
Geloso SA; Milano: G681 [R-Player] ID = 221415 640x480
Select picture or schematic to display from thumbnails on the right and click for download.

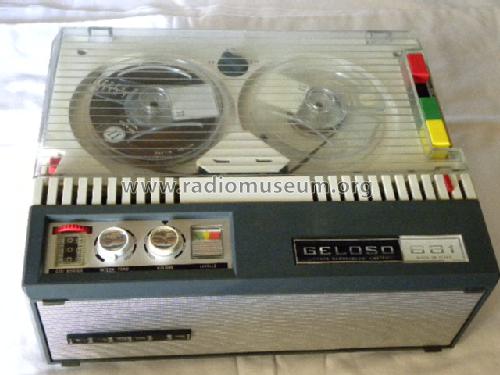

For model G681, Geloso SA; Milano

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1965/1966 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 5:
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 105-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: G681 - Geloso SA; Milano
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 320 x 125 x 270 mm / 12.6 x 4.9 x 10.6 inch
Notes Registratore magnetico alta fedeltà G681. Tre velocità nastro: 9,5-4,75-2,38 cm/sec, registrazione a doppia traccia. La variante G682 ha un sintonizzatore incorporato per la modulazione di frequenza. Transistor: 3x A168 2x B169 + diodi 4x 1S1691 2x 1G27
Net weight (2.2 lb = 1 kg) 5.9 kg / 12 lb 15.9 oz (12.996 lb)
Price in first year of sale 59'500.00 ITL
Collectors' prices
Mentioned in Bollettino Tecnico Geloso (n. 97-a, estate-autunno 1965)

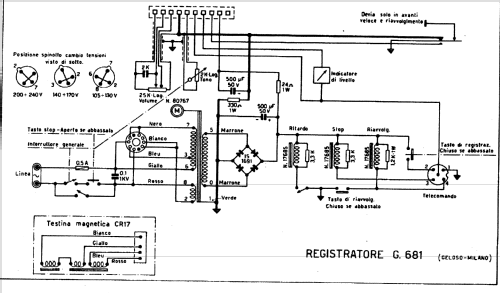

Literature/Schematics (1) Bollettino Tecnico Geloso (N. 102, autunno 1966, pag. 20)

Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
