• Country
• Italy

• Manufacturer / Brand
• Geloso SA; Milano

• Year
• 1970–1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 122740

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• BF194 BF195 BF194 BF195 BF195 BF194 BC148 BC158 AC187 AC188 unknown_tr B30C300

• Main principle
• Superheterodyne (common); ZF/IF 475/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 125; 160; 220 AC / 8 x 1,5 DC Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1.3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Ricevitore AM-FM G16/7 - Geloso SA; Milano

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 250 x 120 x 150 mm / 9.8 x 4.7 x 5.9 inch

• Notes

• Gamme d'onda OM 180-580 mt, FM 87-108 MHz.

  Proposto in due colori: Rosso e grigio.

• Net weight (2.2 lb = 1 kg)
• 1.3 kg / 2 lb 13.8 oz (2.863 lb)

• Price in first year of sale
• 29,000.00 ITL

• Mentioned in
• Catalogo ANIE (1971-72)

• Literature/Schematics (1)
• Bollettino Tecnico Geloso (n. 114 autunno-inverno 1970-71)

• Literature/Schematics (2)

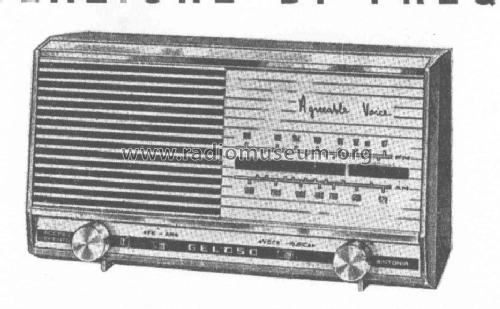

• -- Original prospect or advert (La Domenica del Corriere, 1970)

• Author
• Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
