Super G66
Geloso SA; Milano
- Country
- Italy
- Manufacturer / Brand
- Geloso SA; Milano
- Year
- 1939/1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 30549
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 467 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Super G66 - Geloso SA; Milano
- Shape
- Console: Chairside Radio.
- Dimensions (WHD)
- 670 x 1050 x 460 mm / 26.4 x 41.3 x 18.1 inch
- Notes
-

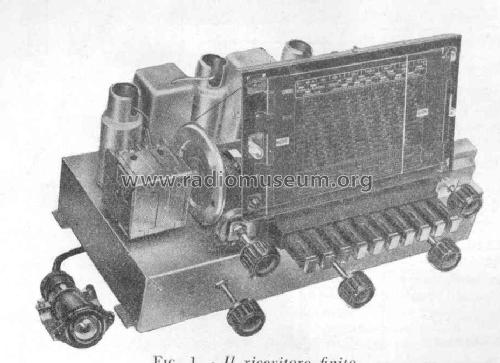

Venduto come solo chassis o con mobile a console n. 3720.
Preselezione a pulsante di 10 emittenti.
Controllo di tono. Ingresso per giradischi.
- Source of data
- Guida Pratica Antique Radio II (2000)
- Mentioned in
- Bollettino Tecnico Geloso (n. 31, 1939)
- Literature/Schematics (1)
- Il Radio Libro (E.D. Ravalico) Edizioni Hoepli
- Literature/Schematics (2)
- -- Schematic (Schemario degli Apparecchi Radio. D.E. Ravalico – Hoepli – 1944.)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
