Transistor amplifier G1/110

Geloso SA; Milano

  • Year
  • 1970 ??
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 279013

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 10 W (15 W max.)
  • Material
  • Metal case
  • from Radiomuseum.org

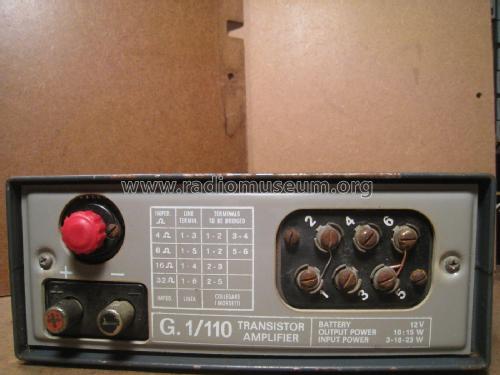

  • Model: Transistor amplifier G1/110 - Geloso SA; Milano
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 190 x 75 x 130 mm / 7.5 x 3 x 5.1 inch
  • Notes
  • Potenza d'uscita 10 W; Potenza massima 15 W. Entrate: 1 Micro- alta impedenza, 2 Fono- alta impedenza. Sensibilità: Micro 6 mV, Fono 150 mV; Impedenza d'uscita: 4, 8, 16, 32 Ohm; Controlli: 1 volume Micro, 2 volume Fono, Tono Alti; Controllo di toni: Alti a 10 kHz da 0 a -20 dB; Ronzio e fruscio alla massima uscita: Micro -60 dB, Fono -70 dB; Alimentazione: 12 V  1 A.

  • Mentioned in
  • Catalogo Geloso Primavera 1970 Impianti diffusione sonora
  • Author
  • Model page created by Giovanni Pugnaghi. See "Data change" for further contributors.
