Amplivoce - Tromba Amplificata a Transistori 2581

Amplivoce - Tromba Amplificata a Transistori 2581; Geloso SA; Milano (ID = 1540396) Speaker-P
Amplivoce - Tromba Amplificata a Transistori 2581; Geloso SA; Milano (ID = 1539444) Speaker-P Amplivoce - Tromba Amplificata a Transistori 2581; Geloso SA; Milano (ID = 1540398) Speaker-P
Amplivoce - Tromba Amplificata a Transistori 2581; Geloso SA; Milano (ID = 1540399) Speaker-P Amplivoce - Tromba Amplificata a Transistori 2581; Geloso SA; Milano (ID = 1963828) Speaker-P
Amplivoce - Tromba Amplificata a Transistori 2581; Geloso SA; Milano (ID = 1963829) Speaker-P Amplivoce - Tromba Amplificata a Transistori 2581; Geloso SA; Milano (ID = 1963830) Speaker-P
Amplivoce - Tromba Amplificata a Transistori 2581; Geloso SA; Milano (ID = 1963831) Speaker-P
Use red slider bar for more.
Amplivoce - Tromba Amplificata a Transistori 2581; Geloso SA; Milano (ID = 1539444) Speaker-P
Geloso SA; Milano: Amplivoce - Tromba Amplificata a Transistori 2581 [Speaker-P] ID = 1539444 654x436
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplivoce - Tromba Amplificata a Transistori 2581, Geloso SA; Milano:
Bollettino Geloso N. 82 del 1961

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1961 Category: Loudspeaker, headphone or earphone
Semiconductors (the count is only for transistors) 4:
Main principle Audio-Amplification
Wave bands - without
Details Loudspeaker + integr.Amplifier
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker -Loudspeaker incorporated, but system not known. / Ø 24 cm = 9.4 inch
Power out
from Radiomuseum.org Model: Amplivoce - Tromba Amplificata a Transistori 2581 - Geloso SA; Milano
Material Modern plastics (no Bakelite or Catalin)
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 240 x 240 x 420 mm / 9.4 x 9.4 x 16.5 inch
Notes

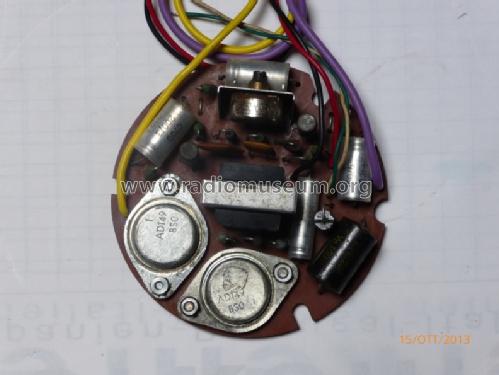

La tromba ha un microfono ed un amplificatore a quattro transistori incorporato, portata oltre 300 metri. Impugnatura a pistola.

Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)
Price in first year of sale 25'000.00 LIT
Mentioned in Bollettino Tecnico Geloso (No. 82, Autuno 1961, p.43)

Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
