For model TV/Clock/Radio G05B, Geloso SA; Milano:
I_GELOSO_G05B_FRONTALE

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1984 ?? Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 1: EIA1240
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Line / Batteries (any type) / 220 / 13,2 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: TV/Clock/Radio G05B - Geloso SA; Milano
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Notes

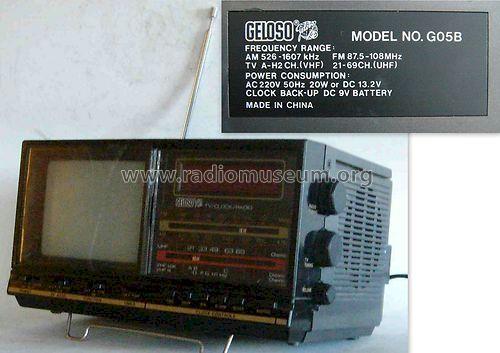

Radio TV e radiosveglia mod G05B, made in China.

Frequency range:

AM 526-1607 kHz      FM 87,5-108 MHz
TV Ch. A-H2 (VHF)     Ch. 21-69 (UHF)

Power requirements:

AC 220V 50Hz 20W or DC 13,2V
Clock: back-up battery 9V

Model page created by Salvatore Reina. See "Data change" for further contributors.
