• Country
• Germany

• Manufacturer / Brand
• Gemeinschaftserzeugnisse Nachkrieg

• Year
• 1947/1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 14761

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH4 ECH4 EBL1 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 470 or 472 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch

• Material
• Bakelite case

• from Radiomuseum.org

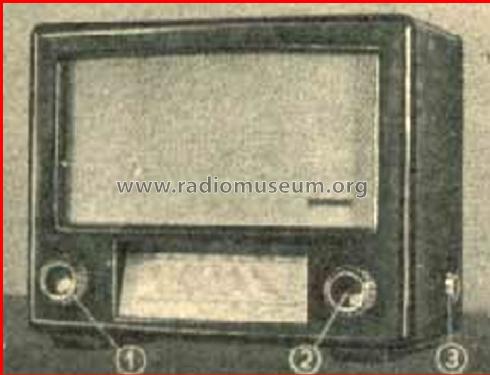

• Model: Standard-Super 1947 - Gemeinschaftserzeugnisse

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 367 x 302 x 186 mm / 14.4 x 11.9 x 7.3 inch

• Notes

• Keine Netztrennung, Autotrafo !
  Gemeinschaftsproduktion Britische Zone !


• Net weight (2.2 lb = 1 kg)
• 6.7 kg / 14 lb 12.1 oz (14.758 lb)

• Price in first year of sale
• 475.00 Mark

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch

• Mentioned in
• Funk-Technik (FT) (1/48 Seite 7)
