• Year
  • 1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 172159

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 458 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 200-260 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: Dapper BC510 [Mantel] - Genalex, BGE brand, British
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 283 x 335 x 230 mm / 11.1 x 13.2 x 9.1 inch
  • Notes

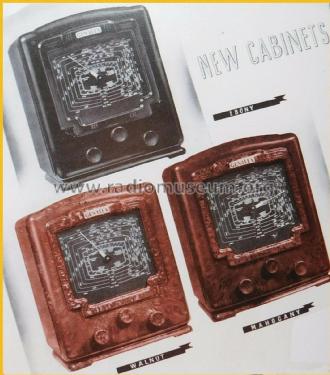

  • Available in either an Ebony, Walnut or Mahogany Bakelite cabinet.

    See also console version with same chassis.





  • Circuit diagram reference
  • Australian Official Radio Service Manual Vol. I I
  • Mentioned in
  • -- Original prospect or advert (Advocate (Tas) Sep 3, 1938 Page 1.)
  • Literature/Schematics (1)
  • Mingay's Radio Diagram & I.F. Index
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
