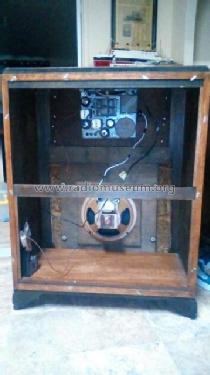

BC595; Genalex, BGE brand, (ID = 2335225) Radio BC595; Genalex, BGE brand, (ID = 2335229) Radio
BC595; Genalex, BGE brand, (ID = 2335228) Radio BC595; Genalex, BGE brand, (ID = 2352016) Radio
BC595; Genalex, BGE brand, (ID = 2335227) Radio BC595; Genalex, BGE brand, (ID = 2335805) Radio
BC595; Genalex, BGE brand, (ID = 2352017) Radio BC595; Genalex, BGE brand, (ID = 2335803) Radio
Use red slider bar for more.
BC595; Genalex, BGE brand, (ID = 2351671) Radio
Genalex, BGE brand,: BC595 [Radio] ID = 2351671 1000x1777
Select picture or schematic to display from thumbnails on the right and click for download.
For model BC595, Genalex, BGE (brand), British General Electric Co. Pty Ltd.; Sydney, NSW.:
Genalex, BGE brand,: BC595

Country:  Australia
Manufacturer / Brand:  Genalex, BGE (brand), British General Electric Co. Pty Ltd.; Sydney, NSW.
Year: 1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6D8G 6S7G 6T7G 6G6G
Main principle Superheterodyne (common); ZF/IF 458 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: BC595 - Genalex, BGE brand, British
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes This model uses a synchronous vibrator power unit.
Circuit diagram reference Australian Official Radio Service Manual Vol. I I
Literature/Schematics (1) Mingay's Radio Diagram & I.F. Index

Model page created by Stuart Irwin. See "Data change" for further contributors.
