BC880

BC880; Genalex, BGE brand, (ID = 795101) Radio
Use red slider bar for more.
BC880; Genalex, BGE brand, (ID = 795101) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Australia
Manufacturer / Brand:  Genalex, BGE (brand), British General Electric Co. Pty Ltd.; Sydney, NSW.
Year: 1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1N5GT 1A7GT 1P5GT 1D8GT
Main principle Superhet with RF-stage; ZF/IF 458 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 105 & 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: BC880 - Genalex, BGE brand, British
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 325 x 205 x 180 mm / 12.8 x 8.1 x 7.1 inch
Notes This model is the same as the Tasma model 880B.

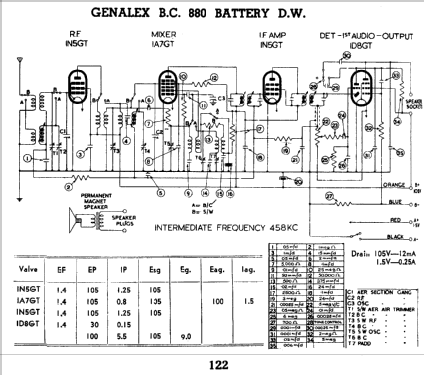

Circuit diagram reference Australian Official Radio Service Manual Vol. V
Literature/Schematics (1) Mingay's Radio Diagram & I.F. Index

Model page created by Stuart Irwin. See "Data change" for further contributors.



All listed radios etc. from Genalex, BGE (brand), British General Electric Co. Pty Ltd.; Sydney, NSW.
Here you find 187 models, 30 with images and 76 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
