BC888

BC888; Genalex, BGE brand, (ID = 795399) Radio
BC888; Genalex, BGE brand, (ID = 2352033) Radio BC888; Genalex, BGE brand, (ID = 2352034) Radio
BC888; Genalex, BGE brand, (ID = 2352035) Radio BC888; Genalex, BGE brand, (ID = 2352036) Radio
Use red slider bar for more.
BC888; Genalex, BGE brand, (ID = 2352033) Radio
Genalex, BGE brand,: BC888 [Radio] ID = 2352033 1181x1098
Select picture or schematic to display from thumbnails on the right and click for download.
For model BC888, Genalex, BGE (brand), British General Electric Co. Pty Ltd.; Sydney, NSW.:
Fabric in poor condition. Radio made in 1946 for Genalex (BGE) by Tasma Radios of Sydney. The same radio was also marketed with the Tasma brand.

Country:  Australia
Manufacturer / Brand:  Genalex, BGE (brand), British General Electric Co. Pty Ltd.; Sydney, NSW.
Year: 1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1N5GT 1A7GT 1N5GT 1H5GT 1Q5GT
Main principle Superhet with RF-stage; ZF/IF 458 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Batteries / addl. power jack / 90 & 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: BC888 - Genalex, BGE brand, British
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)

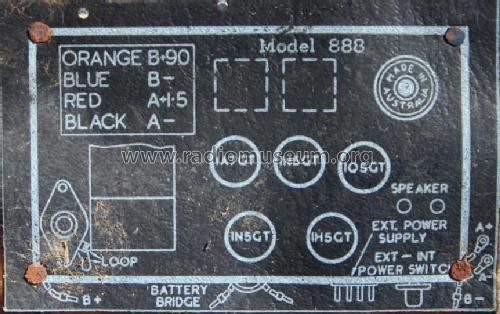

Notes This model has an external plug-in A.C. power supply as well as internal dry batteries. This radio is the same as the Tasma model 888.

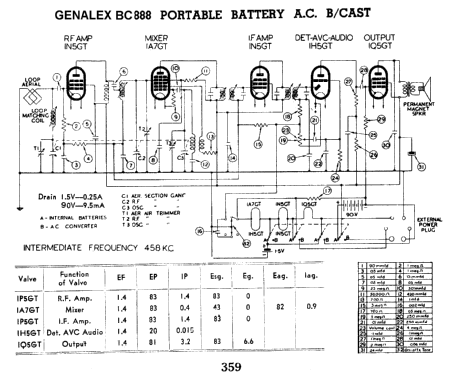

Circuit diagram reference Australian Official Radio Service Manual Vol. V
Literature/Schematics (1) Mingay's Radio Diagram & I.F. Index

Model page created by Stuart Irwin. See "Data change" for further contributors.
