- Country
- Australia
- Manufacturer / Brand
- Genalex, BGE (brand), British General Electric Co. Pty Ltd.; Sydney, NSW.
- Year
- 1946/1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 178585

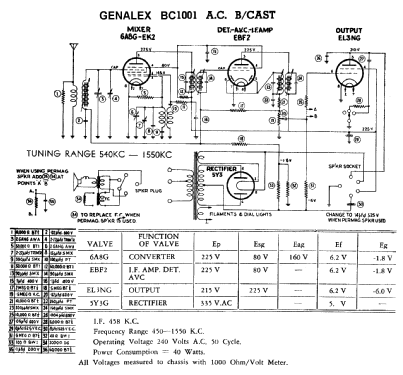

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 458 kHz; 1 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 240 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: Dapper BC1001 - Genalex, BGE brand, British
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 325 x 205 x 180 mm / 12.8 x 8.1 x 7.1 inch
- Notes
-
he price below was for the walnut bakelite cabinet. It was also available in a cream urea cabinet for £19/18/-
See also Tasma version, Baby Model 1001
- Price in first year of sale
- 18.90 AUS £
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. V
- Mentioned in
- Mingay's "Radio Diagram & I.F. Index
- Literature/Schematics (1)
- Australian Official Radio Service Manual AORSM (Volume 5, 1947, Page 125.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
