• Country
• Canada

• Manufacturer / Brand
• General Motors of Canada; Oshawa

• Year
• 1953 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 173933

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6BA6 6BE6 6BA6 6SR7 6V6GT 6V6GT 0Z4

• Main principle
• Superhet with RF-stage; ZF/IF 262.5 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

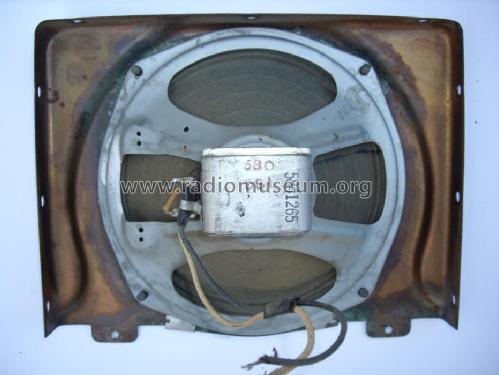

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.25 inch = 18.4 cm

• Power out
• 8 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: 534 [Late] - General Motors of Canada;

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 190 x 250 x 180 mm / 7.5 x 9.8 x 7.1 inch

• Notes

• The General Motors of Canada model 534 with s/n before 53402000 (Early) used different tubes. This model version with s/n's from 53402000 and over, uses some miniature tubes. Used in 1953 Buick model cars.

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Literature/Schematics (1)
• Radio College of Canada (RCC) (1956 supplement 38)

• Author
• Model page created by Paul van der Mast. See "Data change" for further contributors.
