Beat Frequency Audio Generator 1304-B

Beat Frequency Audio Generator 1304-B; General Radio (ID = 2566787) Equipment
Use red slider bar for more.
Beat Frequency Audio Generator 1304-B; General Radio (ID = 2566787) Equipment

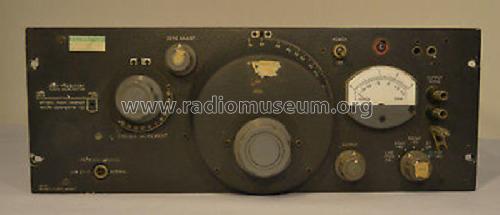

General Radio: Beat Frequency Audio Generator 1304-B [Equipment] ID = 2566787 800x344
Select picture or schematic to display from thumbnails on the right and click for download.
For model Beat Frequency Audio Generator 1304-B, General Radio Company; Cambridge (MA):
Picture from Picclick.

Country:  United States of America (USA)
Manufacturer / Brand:  General Radio Company; Cambridge (MA)
alternative name

GenRad
Year: 1954 ? Category: Service- or Lab Equipment
Valves / Tubes 9: 6SL7GT 6SL7GT 6SA7 6AV5 6AV5 12AT7 0D3 0D3 5V4G
Details
Power type and voltage Alternating Current supply (AC) / 50 to 60 Hz, 105 to 125 or 210 to 250 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Beat Frequency Audio Generator 1304-B - General Radio Company;
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 19.5 x 7.25 x 15.25 inch / 495 x 184 x 387 mm
Notes

20Hz to 40kHz in 2 ranges. Available in rack (-BR) or table (-BM) mount versions.

Net weight (2.2 lb = 1 kg) 39 lb (39 lb 0 oz) / 17.706 kg
Documents regarding this model
  Manufacturer description of model. 1645 KB

Model page created by Ross Lahlum. See "Data change" for further contributors.
