I-F Amplifier 1216-A

I-F Amplifier 1216-A; General Radio (ID = 1788961) Equipment

I-F Amplifier 1216-A; General Radio (ID = 1788962) Equipment
I-F Amplifier 1216-A; General Radio (ID = 737876) Equipment I-F Amplifier 1216-A; General Radio (ID = 1788865) Equipment
I-F Amplifier 1216-A; General Radio (ID = 1788866) Equipment I-F Amplifier 1216-A; General Radio (ID = 1788869) Equipment
I-F Amplifier 1216-A; General Radio (ID = 1788870) Equipment
Use red slider bar for more.
I-F Amplifier 1216-A; General Radio (ID = 737876) Equipment

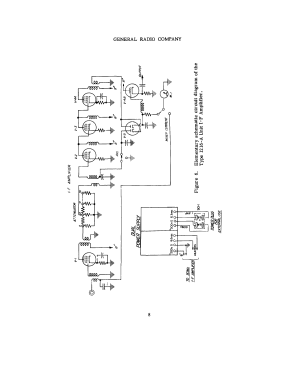

General Radio: I-F Amplifier 1216-A [Equipment] ID = 737876 929x677
Select picture or schematic to display from thumbnails on the right and click for download.
For model I-F Amplifier 1216-A, General Radio Company; Cambridge (MA)

Country:  United States of America (USA)
Manufacturer / Brand:  General Radio Company; Cambridge (MA)
alternative name

GenRad
Year: 1959–1965 Category: Service- or Lab Equipment
Valves / Tubes 5: 6CB6 6CB6 6AK5 6AL5 6U8 0B2
Main principle Radio Frequency Amplification only
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 50/60 cycles, 105-125 / 210-250 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: I-F Amplifier 1216-A - General Radio Company;
Material Metal case
Dimensions (WHD) 242 x 160 x 145 mm / 9.5 x 6.3 x 5.7 inch

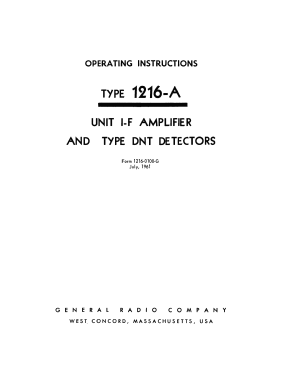

Notes "Four-stage high-gain, intermediate-frequency amplifier operating at a frequency of 30 MHz with a bandwidth of 0,7 MHz. Normally used with a GENRAD Type 874-MR Mixer Rectifier and a GENRAD Unit Oscillator (for instance Type 1208-B) to form a sensitive, wide-frequency-range, well-shielded, VHF and UHF detector." [Type 1216-A Operating Instructions (1959)]. Able to power a GENRAD "Unit Oscillator" (for instance Type 1208-B).
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Mentioned in - - Manufacturers Literature
