Test Oscillator 360

Test Oscillator 360; General Radio (ID = 757631) Equipment

Test Oscillator 360; General Radio (ID = 1324731) Equipment
Test Oscillator 360; General Radio (ID = 1201341) Equipment Test Oscillator 360; General Radio (ID = 1324730) Equipment
Use red slider bar for more.
Test Oscillator 360; General Radio (ID = 1201341) Equipment
General Radio: Test Oscillator 360 [Equipment] ID = 1201341 400x551
Select picture or schematic to display from thumbnails on the right and click for download.
For model Test Oscillator 360, General Radio Company; Cambridge (MA):
Radio Broadcast, May 1930, p. 359

Country:  United States of America (USA)
Manufacturer / Brand:  General Radio Company; Cambridge (MA)
alternative name

GenRad
Year: 1930 Category: Service- or Lab Equipment
Valves / Tubes 1: UX112A 12A
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Test Oscillator 360 - General Radio Company;
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 11 x 7 x 11 inch / 279 x 178 x 279 mm
Notes 175, 180 Kc or 550-1500 Kc output frequency.
Price in first year of sale 110.00 $
External source of data Ernst Erb

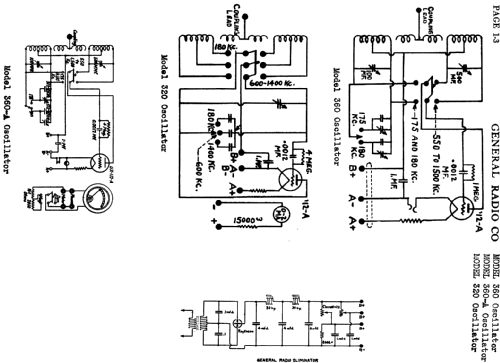

Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Literature/Schematics (1) Radio Broadcast, April 1930, p. 359


All listed radios etc. from General Radio Company; Cambridge (MA)
Here you find 211 models, 193 with images and 80 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
