Rectron "B" Eliminator 390

Rectron 'B' Eliminator 390; General Radio (ID = 757627) Power-S
Use red slider bar for more.
Rectron 'B' Eliminator 390; General Radio (ID = 757627) Power-S
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  General Radio Company; Cambridge (MA)
alternative name

GenRad
Year: 1930 ?? Category: Power supply/conditioner or battery or charger
Valves / Tubes 2: UX213 unknown_Tube
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Rectron "B" Eliminator 390 - General Radio Company;
Notes

"B" eliminator.



External source of data Ernst Erb

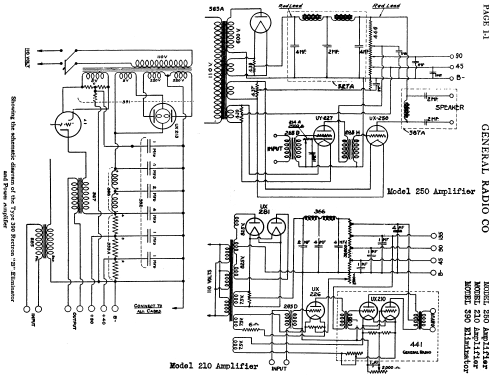

Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
