• Year
  • 1956/1957
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 139668
    • Brand: Musaphonic

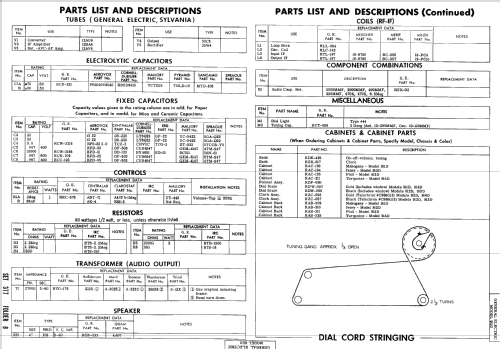

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 105 - 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 914-D - General Electric Co. GE;
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Notes

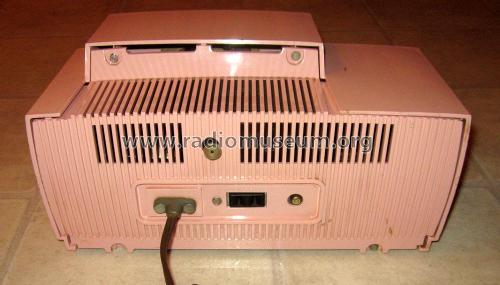

  • The General Electric Model 914-D is an AC Operated 5 Tube AM Receiver with Electric Clock. The AM band frequency tuning range is 535 to 1620kHz. Uses #44 dial lamp.  Has built-in loop antenna and AC appliance recepticle on rear of cabinet which is controlled from the clock. Also has phonograph input on rear of cabinet.

    The 911, 912, 913, 914 family of General Electric clock radio's consist of the following models:

    Model

    Manufacturing Years

    V1 tube Cabinet Color
    911 1955 12BE6 Mahogany
    912 1955 12BE6 Ivory
    913 1955 12BE6 Pink
    911-D 1956-1957 12AU6 Mahogany
    912-D 1956-1957 12AU6 Ivory
    913-D 1956-1957 12AU6 Pink
    914-D 1956-1957 12AU6 Turquoise



  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
