A-65 ; General Electric Co. (ID = 55069) Radio
General Electric Co.: A-65 [Radio] ID = 55069 327x500

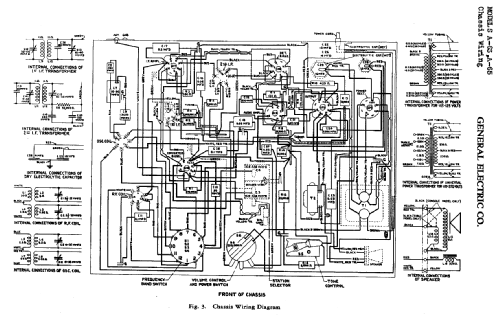

Select picture or schematic to display from thumbnails on the right and click for download.
For model A-65, General Electric Co. (GE); Bridgeport CT, Syracuse NY:
Copy gen. von Radio Attic

Country:  United States of America (USA)
Manufacturer / Brand:  General Electric Co. (GE); Bridgeport CT, Syracuse NY
Brand

Musaphonic
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A8 6K7 6H6 6C5 6F6 5Z4
Main principle Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 25 or 60 cycles: 105 - 120 or 115; 125; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
Power out 1.75 W (unknown quality)
from Radiomuseum.org Model: A-65 - General Electric Co. GE;
Material Wooden case
Shape Console with any shape - in general
Notes

The General Electric models A-63 and A-65 share the same schematic at Rider's 6-9 through 6-13 which show IF peak at 465 kc. They can have a 25 cycle (C) or 60 cycle mains transformer which came in two versions, one fix for 105-120 volts (A), the other for 105 to 250 volts with 4 tappings (V). The Broadcast band covers 540 - 1600 kc and the Short wave band 5.4 16 mc (foreign broadcasts). Distinctive cabinet of butt walnut veneer.

External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 6 = 1935 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Pre-War Consoles
Literature/Schematics (3) General Electric Folder 750M-10-35 for 1935/1936.
