• Year
  • 1946
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 79023
    • Brand: Gecophone

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz
  • Wave bands

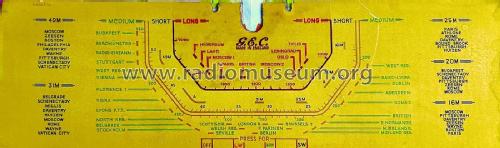

  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • AC/DC-set / 200; 230; 250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: BC4655 - GEC, General Electric Co Ltd.,
  • Shape

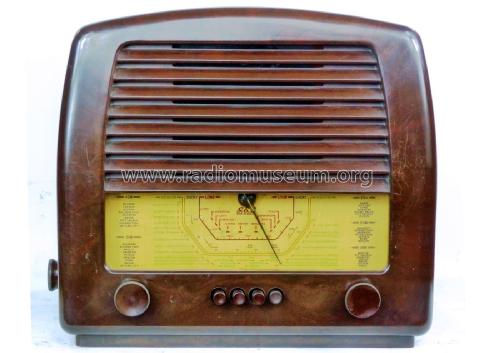

  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 15 x 14 x 8 inch / 381 x 356 x 203 mm
  • Notes
  • An AC/DC mains 3 band table radio with push buttons housed in a bakelite case. Same case as the AC mains GEC BC4650 model.  Provision for gramophone pickup and external loudspeaker. Price in 1946 £20 8s 3d.

  • Price in first year of sale
  • 20.41 £
  • Literature/Schematics (1)
  • - - Manufacturers Literature (GEC Service Bulletin No. 95 BC4655)
