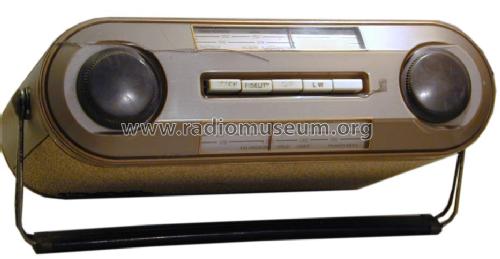

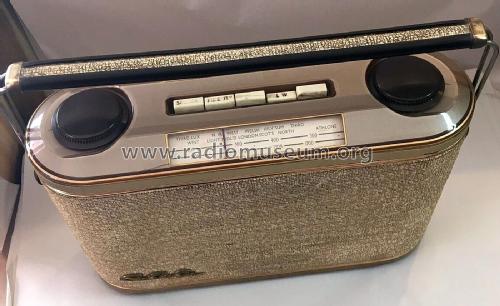

All Transistor BC561

All Transistor BC561; GEC, General (ID = 594167) Radio

All Transistor BC561; GEC, General (ID = 594169) Radio
All Transistor BC561; GEC, General (ID = 1115074) Radio All Transistor BC561; GEC, General (ID = 1115075) Radio
All Transistor BC561; GEC, General (ID = 1115076) Radio All Transistor BC561; GEC, General (ID = 1115077) Radio
All Transistor BC561; GEC, General (ID = 1115078) Radio All Transistor BC561; GEC, General (ID = 1115079) Radio
All Transistor BC561; GEC, General (ID = 1115080) Radio
Use red slider bar for more.
All Transistor BC561; GEC, General (ID = 1115074) Radio
GEC, General: All Transistor BC561 [Radio] ID = 1115074 933x583
Select picture or schematic to display from thumbnails on the right and click for download.
For model All Transistor BC561, GEC, General Electric Co.; London

Country:  Great Britain (UK)
Manufacturer / Brand:  GEC, General Electric Co.; London
Brand

Gecophone
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: GET874 GET873 GET873 GET114 GET114 GET114
Main principle Superheterodyne (common); ZF/IF 470 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: All Transistor BC561 - GEC, General Electric Co.;
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 350 x 222 x 95 mm / 13.8 x 8.7 x 3.7 inch
Notes GE All Transistor BC-561.
Net weight (2.2 lb = 1 kg) 2.320 kg / 5 lb 1.8 oz (5.11 lb)
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) Radio And Television Servicing books (R&TVS)

Model page created by Peter Hoddow. See "Data change" for further contributors.
