• Country
• Great Britain (UK)

• Manufacturer / Brand
• GEC, General Electric Co Ltd., GENALEX; London

• Year
• 1960 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 96032

• • Brand: Gecophone

• Number of Tubes
• 16

• Valves / Tubes
• B349 LZ329 W729 Z749 D77 PCL82 U49 N308 U339 N379 B729 7405A

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• AC/DC-set / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

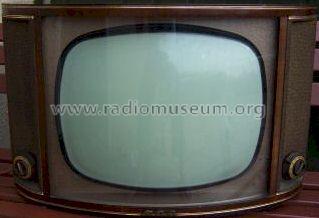

• Model: BT318 - GEC, General Electric Co Ltd.,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 25 x 15.5 x 11.5 inch / 635 x 394 x 292 mm

• Notes
• 17" 110° TV with 12 Channel VHF I/III GB Drum Tuner, Receivers are colour coded to see their fitted channels, all or just 2 or 3, some tubes equipped more than one times.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 444 models, 288 with images and 237 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
