Colorama E-105 ; General Electric Co. (ID = 2388963) Radio

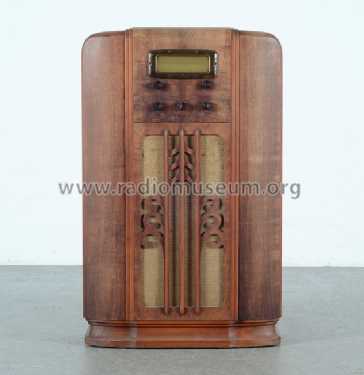

General Electric Co.: Colorama E-105 [Radio] ID = 2388963 633x652
Select picture or schematic to display from thumbnails on the right and click for download.
For model Colorama E-105, General Electric Co. (GE); Bridgeport CT, Syracuse NY

Country:  United States of America (USA)
Manufacturer / Brand:  General Electric Co. (GE); Bridgeport CT, Syracuse NY
Brand

Musaphonic
Year: 1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 6K7 6A8 6J7 6K7 6K7 6H6 6C5 6F5 6L6 5Z4
Main principle Superhet with RF-stage; ZF/IF 465 kHz; 2 AF stage(s)
Tuned circuits 9 AM circuit(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 25 or 60 cycles: 105 - 120 or 115; 125; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out 6.5 W (14 W max.)
from Radiomuseum.org Model: Colorama E-105 - General Electric Co. GE;
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 25 x 40 x 11.8 inch / 635 x 1016 x 300 mm
Notes The General Electric models E-101, E-105 and E-106 share the same schematic (Rider's GE 7-29 through 7-32) and feature the Colorama tuning indicator (see post 5 etc.). The triode 6C5 commands depending on the AGC line the saturation of the "magnetic amplifier", a saturable core reactor. The reactor is in series with a row of 4 red stained pilot lamps and 3 green stained light bulbs behind the scale which turn the light to green when a carrior (station) is tuned in. Weak stations will produce a small color change and strong stations larger changes - a smooth process. This was then a novelty for GE sets - the Magic Eye was just on the market but GE wanted first to have it's own gadget which was a problem to service men and the cost was over twice that of teh tuning eye.

The 6J7 is for the AFC - not applied for the models E-91 and E-95. All these models can have a 25 cycle (C) or 60 cycle mains transformer which came in two versions, one fix for 105-120 volts (A), the other for 105 to 250 volts with 4 tappings (V). The band B (Broadcast) covers 540 - 1680 kc, the band C (Fishery, Police etc.) 1680 - 6000 kc and band D (SW) 6 - 18 mc.
Net weight (2.2 lb = 1 kg) 72 lb (72 lb 0 oz) / 32.688 kg
Price in first year of sale 100.00 $
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
Mentioned in Pre-War Consoles
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 01, 1926-1938
