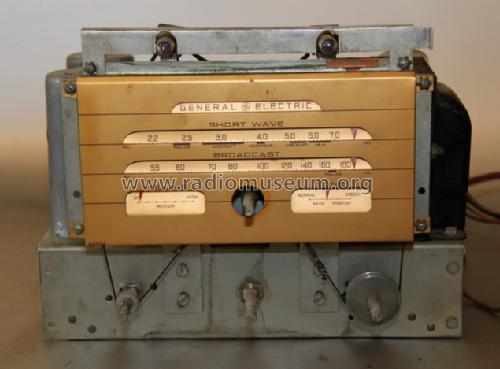

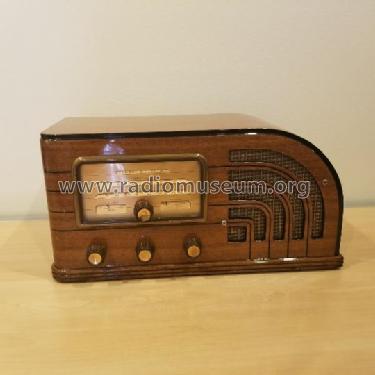

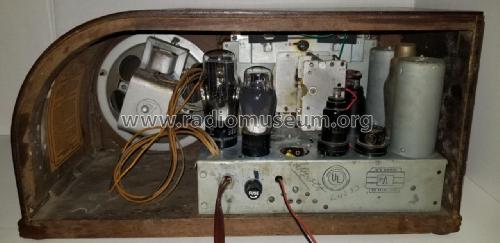

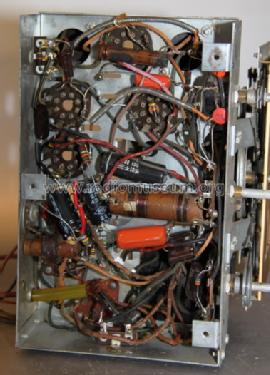

F-63 ; General Electric Co. (ID = 213065) Radio
F-63 ; General Electric Co. (ID = 728697) Radio F-63 ; General Electric Co. (ID = 728700) Radio
F-63 ; General Electric Co. (ID = 728706) Radio F-63 ; General Electric Co. (ID = 227341) Radio
F-63 ; General Electric Co. (ID = 227342) Radio F-63 ; General Electric Co. (ID = 227343) Radio
F-63 ; General Electric Co. (ID = 728703) Radio F-63 ; General Electric Co. (ID = 728708) Radio
F-63 ; General Electric Co. (ID = 728710) Radio F-63 ; General Electric Co. (ID = 841860) Radio
Use red slider bar for more.
F-63 ; General Electric Co. (ID = 728697) Radio
General Electric Co.: F-63 [Radio] ID = 728697 741x445
Select picture or schematic to display from thumbnails on the right and click for download.
For model F-63, General Electric Co. (GE); Bridgeport CT, Syracuse NY

Country:  United States of America (USA)
Manufacturer / Brand:  General Electric Co. (GE); Bridgeport CT, Syracuse NY
Brand

Musaphonic
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A8 6K7 6H6 6F5 41 80
Main principle Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 115-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: F-63 - General Electric Co. GE;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 445 x 225 x 195 mm / 17.5 x 8.9 x 7.7 inch
Notes

Alternativ Universal Transformer 120-240 Volts. Tuning Range: 540 to 1720 kc, 2400 to 7000 kc.

Net weight (2.2 lb = 1 kg) 7.2 kg / 15 lb 13.7 oz (15.859 lb)
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition

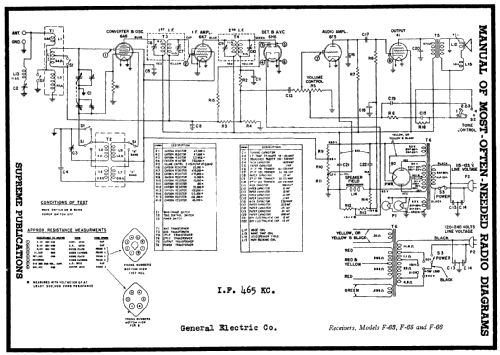

Circuit diagram reference Rider's Perpetual, Volume 8 = 1937 and before
Mentioned in Table Top Radios Vol. 1 Stein 98
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 01, 1926-1938

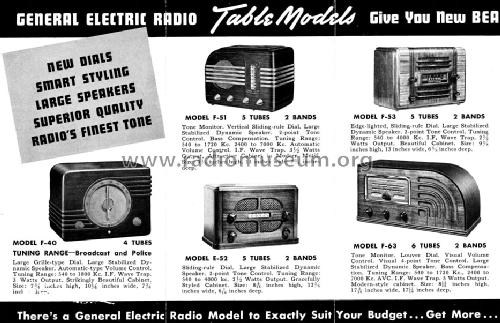

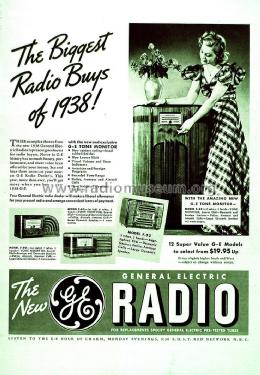

Literature/Schematics (2) Radio Retailing (Radio & Television R.) (June 1937.)
Literature/Schematics (3) General Electric Folder 1000M 9-37 for 1938.
