FA-60

FA-60 ; General Electric Co. (ID = 404147) Car Radio

FA-60 ; General Electric Co. (ID = 404149) Car Radio

FA-60 ; General Electric Co. (ID = 404151) Car Radio

FA-60 ; General Electric Co. (ID = 404153) Car Radio
FA-60 ; General Electric Co. (ID = 1006078) Car Radio FA-60 ; General Electric Co. (ID = 1001692) Car Radio
FA-60 ; General Electric Co. (ID = 1001694) Car Radio FA-60 ; General Electric Co. (ID = 1030603) Car Radio
FA-60 ; General Electric Co. (ID = 1031149) Car Radio
Use red slider bar for more.
FA-60 ; General Electric Co. (ID = 1006078) Car Radio
General Electric Co.: FA-60 [Car Radio] ID = 1006078 600x513
Select picture or schematic to display from thumbnails on the right and click for download.
For model FA-60, General Electric Co. (GE); Bridgeport CT, Syracuse NY:

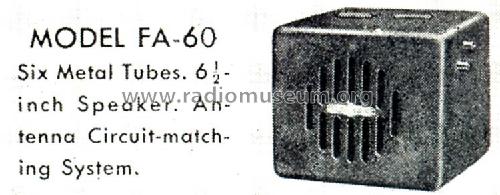

Scanned from the Radio Retailing April 1937.

Country:  United States of America (USA)
Manufacturer / Brand:  General Electric Co. (GE); Bridgeport CT, Syracuse NY
Brand

Musaphonic
Year: 1936/1937 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 6: 6K7 6A8 6K7 6H6 6F5 6F6
Main principle Superhet with RF-stage; ZF/IF 175 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6.3 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm
Power out
from Radiomuseum.org Model: FA-60 - General Electric Co. GE;
Material Metal case
Shape Chassis only or for «building in»
Notes Sync.Vibrator for +B.
Price in first year of sale 39.95 $
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 8 = 1937 and before
Mentioned in Radio Retailing (Radio & Television R.) (February, March, April 1937.)
