GE FM/AM Car Portable Radio - Solid State Long Range P-1940B
General Electric Co. (GE); Bridgeport CT, Syracuse NY
- País
- Estados Unidos
- Fabricante / Marca
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Año
- 1968 ?
- Categoría
- Radio - o Sintonizador pasado WW2
- Radiomuseum.org ID
- 362026
-
- Brand: Musaphonic

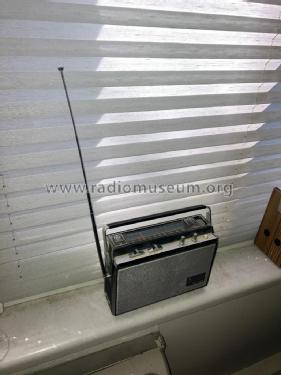

Overall View

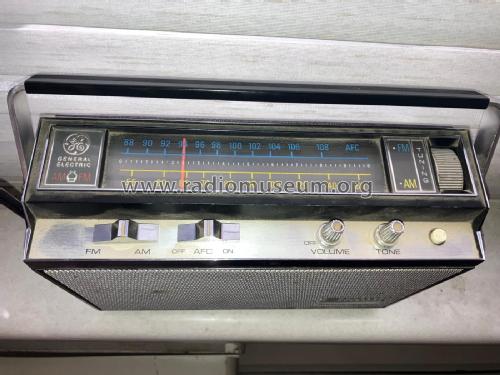

Dial and Controls

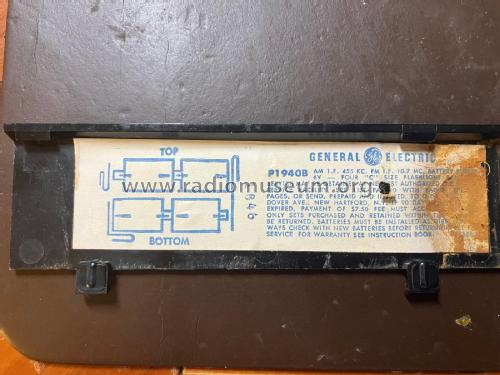

Battery Cover Label
- Numero de transistores
- Hay semiconductores.
- Semiconductores
- Principio principal
- Superheterodino en general; ZF/IF 455/10700 kHz
- Número de circuitos sintonía
- 8 Circuíto(s) FM
- Gama de ondas
- OM y FM
- Tensión de funcionamiento
- Pilas / C: 4 x 1.5 Volt
- Altavoz
- Altavoz elíptico de imán permanente.
- Material
- Plástico moderno (Nunca bakelita o catalina)
- de Radiomuseum.org
- Modelo: GE FM/AM Car Portable Radio - Solid State Long Range P-1940B - General Electric Co. GE;
- Forma
- Portátil > 20 cm (sin la necesidad de una red)
- Ancho, altura, profundidad
- 9 x 3 x 8 inch / 229 x 76 x 203 mm
- Anotaciones
-
The GE P-1940B is a portable AM/FM radio with car capabilities has the following features:
- It is an updated version of the GE P-1920, which was introduced a few years earlier.
- A locking car mounting bracket was included (however, it is primarily a portable radio)
- Dimensions are with radio in bracket. Radio alone is slightly smaller.
- 6" x 4" oval PM dynamic speaker.
- Uses 4 C cell batteries.
- Antenna connections on left side of cabinet, near bottom.
- IF: AM 455 kHz, FM 10.7 MHz.
Known differences between P-1920 vs P-1940B:
- P-1940 has rotary knob controls for volume and tone instead of thumbwheel controls.
- P-1940 has a dial light.
- P-1940 says "Solid State" instead of "Musiphonic" on the speaker grille emblem.
- Peso neto
- 10 lb 0 oz (10 lb) / 4.540 kg
- Precio durante el primer año
- 75.00 USD
- Autor
- Modelo creado por Michael Witas. Ver en "Modificar Ficha" los participantes posteriores.
