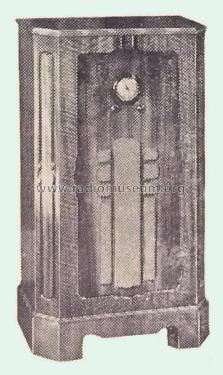

G.E. Jupiter 44B

G.E. Jupiter 44B; Australian General (ID = 1937855) Radio

G.E. Jupiter 44B; Australian General (ID = 1937856) Radio
Use red slider bar for more.
G.E. Jupiter 44B; Australian General (ID = 1937855) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Australia
Manufacturer / Brand:  Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney
alternative name

General Electric Company of Australia Ltd.
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 78 6A7 6B7 38
Main principle Superhet with RF-stage; ZF/IF 175 kHz; 2 AF stage(s); Reflex
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 135 & 67.5 & 22.5 & 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: G.E. Jupiter 44B - Australian General Electric GE
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes The 6B7 is reflexed as the I.F. amplifier and the 1st A.F. amplifier.
Price in first year of sale 28.00 Aus£
Literature/Schematics (1) Radio Trade Annual 1939 P246.

Model page created by Stuart Irwin. See "Data change" for further contributors.
