Gecophone Crystal Detector Set No.2 BC1501
Use red slider bar for more.

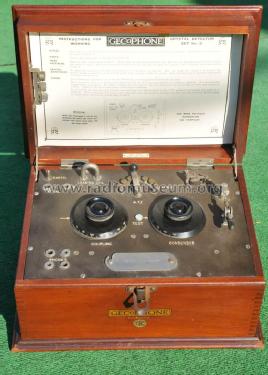

GEC, General: Gecophone Crystal Detector Set No.2 BC1501 [Crystal] ID = 1763091 787x1100
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
Gecophone | ||||
|---|---|---|---|---|---|
| Year: 1922 | Category: Detector-Radio (Crystal or diode, without tubes/transistors) | ||||
| schematic requested | |||||
| Main principle | Crystal or Solid State Detector |
|---|---|
| Tuned circuits | 1 AM circuit(s) |
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | No Power needed |
| Loudspeaker | - For headphones or amp. |
| Power out | |
| from Radiomuseum.org | Model: Gecophone Crystal Detector Set No.2 BC1501 - GEC, General Electric Co.; |

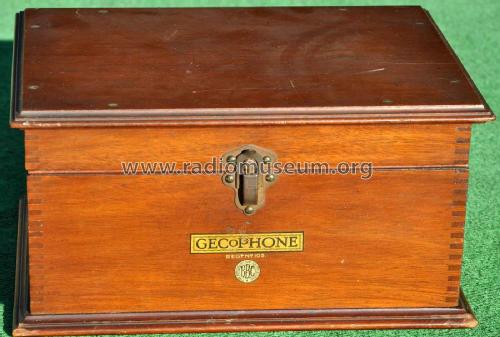

| Material | Wooden case |
| Shape | Tablemodel, Box - most often with Lid (NOT slant panel). |
| Dimensions (WHD) | 12.75 x 9.5 x 6.75 inch / 324 x 241 x 171 mm |
| Notes | BBC/PMG stamp; GPO No.103; optional plug in loading coils for LW; very early (pre BBC) sets are without BBC/PMG/GPO No.; |
| Source of data | Radio! Radio! |
Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
